Text Classification with TensorFlow Estimators

This post is a tutorial on how to use TensorFlow Estimators for text classification.

Note: This post was written together with the awesome Julian Eisenschlos and was originally published on the TensorFlow blog.

Hello there! Throughout this post we will show you how to classify text using Estimators in TensorFlow. Here’s the outline of what we’ll cover:

  • Loading data using Datasets.
  • Building baselines using pre-canned estimators.
  • Using word embeddings.
  • Building custom estimators with convolution and LSTM layers.
  • Loading pre-trained word vectors.
  • Evaluating and comparing models using TensorBoard.

Welcome to Part 4 of a blog series that introduces TensorFlow Datasets and Estimators. You don’t need to read all of the previous material, but take a look if you want to refresh any of the following concepts. Part 1 focused on pre-made Estimators, Part 2 discussed feature columns, and Part 3 how to create custom Estimators.

Here in Part 4, we will build on top of all the above to tackle a different family of problems in Natural Language Processing (NLP). In particular, this article demonstrates how to solve a text classification task using custom TensorFlow estimators, embeddings, and the tf.layers module. Along the way, we’ll learn about word2vec and transfer learning as a technique to bootstrap model performance when labeled data is a scarce resource.

We will show you relevant code snippets. Here’s the complete Jupyter Notebook that you can run locally or on Google Colaboratory. The plain .py source file is also available here. Note that the code was written to demonstrate how Estimators work functionally and was not optimized for maximum performance.

The task

The dataset we will be using is the IMDB Large Movie Review Dataset, which consists of 25,00025,000 highly polar movie reviews for training, and 25,00025,000 for testing. We will use this dataset to train a binary classification model, able to predict whether a review is positive or negative.

For illustration, here’s a piece of a negative review (with 22 stars) in the dataset:

Now, I LOVE Italian horror films. The cheesier they are, the better. However, this is not cheesy Italian. This is week-old spaghetti sauce with rotting meatballs. It is amateur hour on every level. There is no suspense, no horror, with just a few drops of blood scattered around to remind you that you are in fact watching a horror film.

Keras provides a convenient handler for importing the dataset which is also available as a serialized numpy array .npz file to download here. For text classification, it is standard to limit the size of the vocabulary to prevent the dataset from becoming too sparse and high dimensional, causing potential overfitting. For this reason, each review consists of a series of word indexes that go from 44 (the most frequent word in the dataset the) to 49994999, which corresponds to orange. Index 11 represents the beginning of the sentence and the index 22 is assigned to all unknown (also known as out-of-vocabulary or OOV) tokens. These indexes have been obtained by pre-processing the text data in a pipeline that cleans, normalizes and tokenizes each sentence first and then builds a dictionary indexing each of the tokens by frequency.

After we’ve loaded the data in memory we pad each of the sentences with $0$ so that we have two $25000 \times 200$ arrays for training and testing respectively.

vocab_size = 5000
sentence_size = 200
(x_train_variable, y_train), (x_test_variable, y_test) = imdb.load_data(num_words=vocab_size)
x_train = sequence.pad_sequences(
    x_train_variable,
    maxlen=sentence_size,
    padding='post',
    value=0)
x_test = sequence.pad_sequences(
    x_test_variable,
    maxlen=sentence_size,
    padding='post',
    value=0)

Input Functions

The Estimator framework uses input functions to split the data pipeline from the model itself. Several helper methods are available to create them, whether your data is in a .csv file, or in a pandas.DataFrame, whether it fits in memory or not. In our case, we can use Dataset.from_tensor_slices for both the train and test sets.

x_len_train = np.array([min(len(x), sentence_size) for x in x_train_variable])
x_len_test = np.array([min(len(x), sentence_size) for x in x_test_variable])

def parser(x, length, y):
    features = {"x": x, "len": length}
    return features, y

def train_input_fn():
    dataset = tf.data.Dataset.from_tensor_slices((x_train, x_len_train, y_train))
    dataset = dataset.shuffle(buffer_size=len(x_train_variable))
    dataset = dataset.batch(100)
    dataset = dataset.map(parser)
    dataset = dataset.repeat()
    iterator = dataset.make_one_shot_iterator()
    return iterator.get_next()

def eval_input_fn():
    dataset = tf.data.Dataset.from_tensor_slices((x_test, x_len_test, y_test))
    dataset = dataset.batch(100)
    dataset = dataset.map(parser)
    iterator = dataset.make_one_shot_iterator()
    return iterator.get_next()

We shuffle the training data and do not predefine the number of epochs we want to train, while we only need one epoch of the test data for evaluation. We also add an additional "len" key that captures the length of the original, unpadded sequence, which we will use later.

Building a baseline

It’s good practice to start any machine learning project trying basic baselines. The simpler the better as having a simple and robust baseline is key to understanding exactly how much we are gaining in terms of performance by adding extra complexity. It may very well be the case that a simple solution is good enough for our requirements.

With that in mind, let us start by trying out one of the simplest models for text classification. That would be a sparse linear model that gives a weight to each token and adds up all of the results, regardless of the order. As this model does not care about the order of words in a sentence, we normally refer to it as a Bag-of-Words approach. Let’s see how we can implement this model using an Estimator.

We start out by defining the feature column that is used as input to our classifier. As we have seen in Part 2, categorical_column_with_identity is the right choice for this pre-processed text input. If we were feeding raw text tokens other feature_columns could do a lot of the pre-processing for us. We can now use the pre-made LinearClassifier.

column = tf.feature_column.categorical_column_with_identity('x', vocab_size)
classifier = tf.estimator.LinearClassifier(
    feature_columns=[column],
    model_dir=os.path.join(model_dir, 'bow_sparse'))

Finally, we create a simple function that trains the classifier and additionally creates a precision-recall curve. As we do not aim to maximize performance in this blog post, we only train our models for 25,000 steps.

def train_and_evaluate(classifier):
    classifier.train(input_fn=train_input_fn, steps=25000)
    eval_results = classifier.evaluate(input_fn=eval_input_fn)
    predictions = np.array([p['logistic'][0] for p in classifier.predict(input_fn=eval_input_fn)])
    tf.reset_default_graph()
    # Add a PR summary in addition to the summaries that the classifier writes
    pr = summary_lib.pr_curve('precision_recall', predictions=predictions, labels=y_test.astype(bool), num_thresholds=21)
    with tf.Session() as sess:
        writer = tf.summary.FileWriter(os.path.join(classifier.model_dir, 'eval'), sess.graph)
        writer.add_summary(sess.run(pr), global_step=0)
        writer.close()
train_and_evaluate(classifier)

One of the benefits of choosing a simple model is that it is much more interpretable. The more complex a model, the harder it is to inspect and the more it tends to work like a black box. In this example, we can load the weights from our model’s last checkpoint and take a look at what tokens correspond to the biggest weights in absolute value. The results look like what we would expect.

# Load the tensor with the model weights
weights = classifier.get_variable_value('linear/linear_model/x/weights').flatten()
# Find biggest weights in absolute value
extremes = np.concatenate((sorted_indexes[-8:], sorted_indexes[:8]))
# word_inverted_index is a dictionary that maps from indexes back to tokens
extreme_weights = sorted(
    [(weights[i], word_inverted_index[i - index_offset]) for i in extremes])
# Create plot
y_pos = np.arange(len(extreme_weights))
plt.bar(y_pos, [pair[0] for pair in extreme_weights], align='center', alpha=0.5)
plt.xticks(y_pos, [pair[1] for pair in extreme_weights], rotation=45, ha='right')
plt.ylabel('Weight')
plt.title('Most significant tokens')
plt.show()

Model weights

As we can see, tokens with the most positive weight such as ‘refreshing’ are clearly associated with positive sentiment, while tokens that have a large negative weight unarguably evoke negative emotions. A simple but powerful modification that one can do to improve this model is weighting the tokens by their tf-idf scores.

Embeddings

The next step of complexity we can add are word embeddings. Embeddings are a dense low-dimensional representation of sparse high-dimensional data. This allows our model to learn a more meaningful representation of each token, rather than just an index. While an individual dimension is not meaningful, the low-dimensional space—when learned from a large enough corpus—has been shown to capture relations such as tense, plural, gender, thematic relatedness, and many more. We can add word embeddings by converting our existing feature column into an embedding_column. The representation seen by the model is the mean of the embeddings for each token (see the combiner argument in the docs). We can plug in the embedded features into a pre-canned DNNClassifier.

A note for the keen observer: an embedding_column is just an efficient way of applying a fully connected layer to the sparse binary feature vector of tokens, which is multiplied by a constant depending of the chosen combiner. A direct consequence of this is that it wouldn’t make sense to use an embedding_column directly in a LinearClassifier because two consecutive linear layers without non-linearities in between add no prediction power to the model, unless of course the embeddings are pre-trained.

embedding_size = 50
word_embedding_column = tf.feature_column.embedding_column(
    column, dimension=embedding_size)
classifier = tf.estimator.DNNClassifier(
    hidden_units=[100],
    feature_columns=[word_embedding_column],
    model_dir=os.path.join(model_dir, 'bow_embeddings'))
train_and_evaluate(classifier)

We can use TensorBoard to visualize our $50$ dimensional word vectors projected into $\mathbb{R}^3$ using t-SNE. We expect similar words to be close to each other. This can be a useful way to inspect our model weights and find unexpected behaviours.

embeddings

Convolutions

At this point one possible approach would be to go deeper, further adding more fully connected layers and playing around with layer sizes and training functions. However, by doing that we would add extra complexity and ignore important structure in our sentences. Words do not live in a vacuum and meaning is compositional, formed by words and its neighbors.

Convolutions are one way to take advantage of this structure, similar to how we can model salient clusters of pixels for image classification. The intuition is that certain sequences of words, or n-grams, usually have the same meaning regardless of their overall position in the sentence. Introducing a structural prior via the convolution operation allows us to model the interaction between neighboring words and consequently gives us a better way to represent such meaning.

The following image shows how a filter matrix $F \in \mathbb{R}^{d\times m}$ tri-gram window of tokens to build a new feature map. Afterwards a pooling layer is usually applied to combine adjacent results.

text convolution


Source: Learning to Rank Short Text Pairs with Convolutional Deep Neural Networks by Severyn et al. [2015]

Let us look at the full model architecture. The use of dropout layers is a regularization technique that makes the model less likely to overfit.

Embedding Layer
Dropout
Convolution1D
GlobalMaxPooling1D
Hidden Dense Layer
Dropout
Output Layer

Creating a custom estimator

As seen in previous blog posts, the tf.estimator framework provides a high-level API for training machine learning models, defining train(), evaluate() and predict() operations, handling checkpointing, loading, initializing, serving, building the graph and the session out of the box. There is a small family of pre-made estimators, like the ones we used earlier, but it’s most likely that you will need to build your own.

Writing a custom estimator means writing a model_fn(features, labels, mode, params) that returns an EstimatorSpec. The first step will be mapping the features into our embedding layer:

input_layer = tf.contrib.layers.embed_sequence(
    features['x'],
    vocab_size,
    embedding_size,
    initializer=params['embedding_initializer'])

Then we use tf.layers to process each output sequentially.

training = (mode == tf.estimator.ModeKeys.TRAIN)
dropout_emb = tf.layers.dropout(inputs=input_layer,
                                rate=0.2,
                                training=training)
conv = tf.layers.conv1d(
    inputs=dropout_emb,
    filters=32,
    kernel_size=3,
    padding="same",
    activation=tf.nn.relu)
pool = tf.reduce_max(input_tensor=conv, axis=1)
hidden = tf.layers.dense(inputs=pool, units=250, activation=tf.nn.relu)
dropout = tf.layers.dropout(inputs=hidden, rate=0.2, training=training)
logits = tf.layers.dense(inputs=dropout_hidden, units=1)

Finally, we will use a Head to simplify the writing of our last part of the model_fn. The head already knows how to compute predictions, loss, train_op, metrics and export outputs, and can be reused across models. This is also used in the pre-made estimators and provides us with the benefit of a uniform evaluation function across all of our models. We will use binary_classification_head, which is a head for single label binary classification that uses sigmoid_cross_entropy_with_logits as the loss function under the hood.

head = tf.contrib.estimator.binary_classification_head()
optimizer = tf.train.AdamOptimizer()
def _train_op_fn(loss):
    tf.summary.scalar('loss', loss)
    return optimizer.minimize(
        loss=loss,
        global_step=tf.train.get_global_step())

return head.create_estimator_spec(
    features=features,
    labels=labels,
    mode=mode,
    logits=logits,
    train_op_fn=_train_op_fn)

Running this model is just as easy as before:

initializer = tf.random_uniform([vocab_size, embedding_size], -1.0, 1.0))
params = {'embedding_initializer': initializer}
cnn_classifier = tf.estimator.Estimator(model_fn=model_fn,
                                        model_dir=os.path.join(model_dir, 'cnn'),
                                        params=params)
train_and_evaluate(cnn_classifier)

LSTM Networks

Using the Estimator API and the same model head, we can also create a classifier that uses a Long Short-Term Memory (LSTM) cell instead of convolutions. Recurrent models such as this are some of the most successful building blocks for NLP applications. An LSTM processes the entire document sequentially, recursing over the sequence with its cell while storing the current state of the sequence in its memory.

One of the drawbacks of recurrent models compared to CNNs is that, because of the nature of recursion, models turn out deeper and more complex, which usually produces slower training time and worse convergence. LSTMs (and RNNs in general) can suffer convergence issues like vanishing or exploding gradients, that said, with sufficient tuning they can obtain state-of-the-art results for many problems. As a rule of thumb CNNs are good at feature extraction, while RNNs excel at tasks that depend on the meaning of the whole sentence, like question answering or machine translation.

Each cell processes one token embedding at a time updating its internal state based on a differentiable computation that depends on both the embedding vector $x_t$ and the previous state $h_{t-1}$. In order to get a better understanding of how LSTMs work, you can refer to Chris Olah’s blog post.

LSTM Architecture


Source: Understanding LSTM Networks by Chris Olah

The complete LSTM model can be expressed by the following simple flowchart:

lstm_flow_chart

In the beginning of this post, we padded all documents up to 200200 tokens, which is necessary to build a proper tensor. However, when a document contains fewer than 200200 words, we don’t want the LSTM to continue processing padding tokens as it does not add information and degrades performance. For this reason, we additionally want to provide our network with the length of the original sequence before it was padded. Internally, the model then copies the last state through to the sequence’s end. We can do this by using the "len" feature in our input functions. We can now use the same logic as above and simply replace the convolutional, pooling, and flatten layers with our LSTM cell.

lstm_cell = tf.nn.rnn_cell.BasicLSTMCell(100)
_, final_states = tf.nn.dynamic_rnn(
        lstm_cell, inputs, sequence_length=features['len'], dtype=tf.float32)
logits = tf.layers.dense(inputs=final_states.h, units=1)

Pre-trained vectors

Most of the models that we have shown before rely on word embeddings as a first layer. So far, we have initialized this embedding layer randomly. However, much previous work has shown that using embeddings pre-trained on a large unlabeled corpus as initialization is beneficial, particularly when training on only a small number of labeled examples. The most popular pre-trained embedding is word2vec. Leveraging knowledge from unlabeled data via pre-trained embeddings is an instance of transfer learning.

To this end, we will show you how to use them in an Estimator. We will use the pre-trained vectors from another popular model, GloVe.

embeddings = {}
with open('glove.6B.50d.txt', 'r', encoding='utf-8') as f:
    for line in f:
        values = line.strip().split()
        w = values[0]
        vectors = np.asarray(values[1:], dtype='float32')
        embeddings[w] = vectors

After loading the vectors into memory from a file we store them as a numpy.array using the same indexes as our vocabulary. The created array is of shape (5000, 50). At every row index, it contains the 50-dimensional vector representing the word at the same index in our vocabulary.

embedding_matrix = np.random.uniform(-1, 1, size=(vocab_size, embedding_size))
for w, i in word_index.items():
    v = embeddings.get(w)
    if v is not None and i < vocab_size:
        embedding_matrix[i] = v

Finally, we can use a custom initializer function and pass it in the params object to our cnn_model_fn , without any modifications.

def my_initializer(shape=None, dtype=tf.float32, partition_info=None):
    assert dtype is tf.float32
    return embedding_matrix
params = {'embedding_initializer': my_initializer}
cnn_pretrained_classifier = tf.estimator.Estimator(
    model_fn=cnn_model_fn,
    model_dir=os.path.join(model_dir, 'cnn_pretrained'),
    params=params)
train_and_evaluate(cnn_pretrained_classifier)

Running TensorBoard

Now we can launch TensorBoard and see how the different models we’ve trained compare against each other in terms of training time and performance.

In a terminal, we run

> tensorboard --logdir={model_dir}

We can visualize many metrics collected while training and testing, including the loss function values of each model at each training step, and the precision-recall curves. This is of course most useful to select which model works best for our use-case as well as how to choose classification thresholds.

PR curve

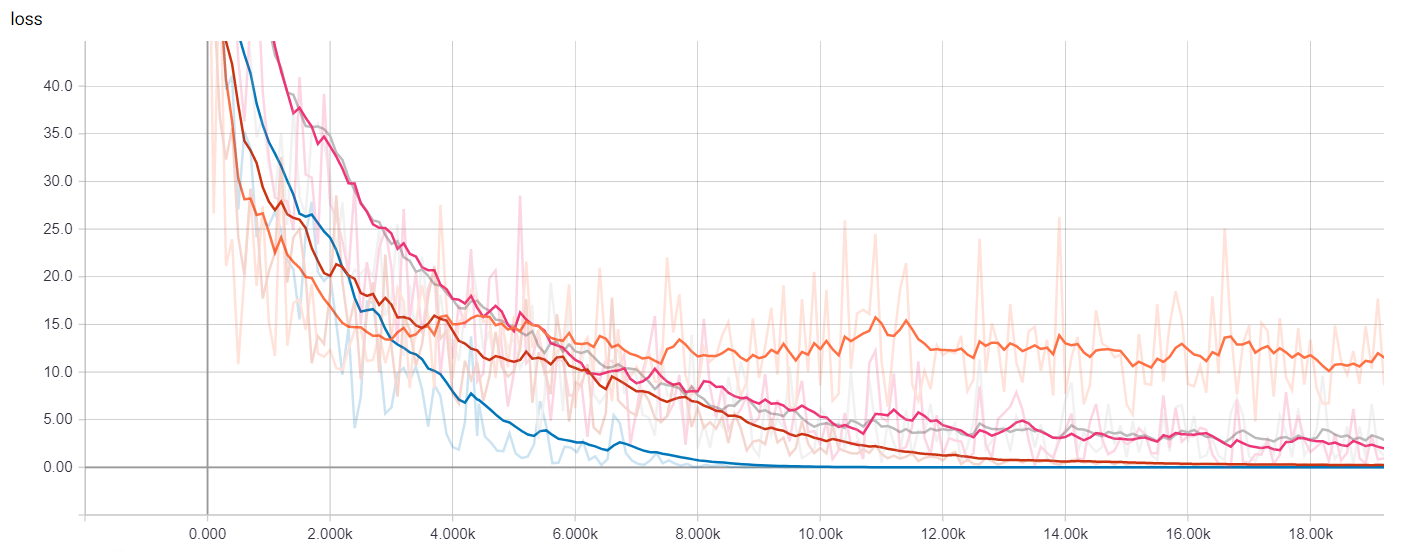

loss

Getting Predictions

To obtain predictions on new sentences we can use the predict method in the Estimator instances, which will load the latest checkpoint for each model and evaluate on the unseen examples. But before passing the data into the model we have to clean up, tokenize and map each token to the corresponding index as we see below.

def text_to_index(sentence):
    # Remove punctuation characters except for the apostrophe
    translator = str.maketrans('', '', string.punctuation.replace("'", ''))
    tokens = sentence.translate(translator).lower().split()
    return np.array([1] + [word_index[t] + index_offset if t in word_index else 2 for t in tokens])

def print_predictions(sentences, classifier):
    indexes = [text_to_index(sentence) for sentence in sentences]
    x = sequence.pad_sequences(indexes,
                               maxlen=sentence_size,
                               padding='post',
                               value=-1)
    length = np.array([min(len(x), sentence_size) for x in indexes])
    predict_input_fn = tf.estimator.inputs.numpy_input_fn(x={"x": x, "len": length}, shuffle=False)
    predictions = [p['logistic'][0] for p in classifier.predict(input_fn=predict_input_fn)]
    print(predictions)

It is worth noting that the checkpoint itself is not sufficient to make predictions; the actual code used to build the estimator is necessary as well in order to map the saved weights to the corresponding tensors. It’s a good practice to associate saved checkpoints with the branch of code with which they were created.

If you are interested in exporting the models to disk in a fully recoverable way, you might want to look into the SavedModel class, which is especially useful for serving your model through an API using TensorFlow Serving.

Summary

In this blog post, we explored how to use estimators for text classification, in particular for the IMDB Reviews Dataset. We trained and visualized our own embeddings, as well as loaded pre-trained ones. We started from a simple baseline and made our way to convolutional neural networks and LSTMs.

For more details, be sure to check out:

Thanks for reading!
